詳細介紹

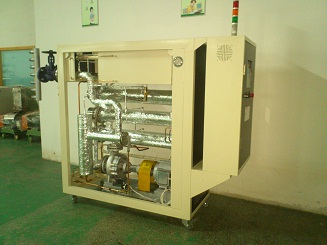

河北導熱油爐是以導熱油作為媒介的模溫機，也可以稱作油加熱器、油溫加熱器、油循環控溫機、電加熱導熱油爐。油溫機本身設有一個儲油箱，任務時導熱油由儲油箱進入系統，經循環泵打入到模具或其它需求控溫的設備，導熱油從被控溫設備出來后，再前往到零碎，循環往復。導熱油同過加熱器升溫，當感溫探頭探測到的媒體溫度到達設定值時，加熱器中止任務。當溫度低于設定值時，加熱器開端任務，當溫度到達設定值后，又中止任務，如此循環往復。
油溫機作用：
適用于輔佐消費工程塑料料、塑料制品。例如：尼龍、PC、亞克力的啤制品。油溫機先預調到達注塑模具所需的溫度，一次成型為優質產品，增加試模原料。模溫機精確增加廢料，提供消費及質量，乃注塑行業不可短少的工具。
| 高溫油溫機Standard oil temperature machine | ||||||||
| 特 點 FEATURES | ||||||||
| 1.管路防爆裝置 | ||||||||
| Explosion/proof equipment for pipelines | ||||||||
| 2.吹氣回油功能（選購） | ||||||||
| Air blowing and return oil function（optional) | ||||||||
| 3.回油溫度顯示表 | ||||||||
| Thermometer for return oil | ||||||||
| 4.開機自動排氣功能 | ||||||||
| Automatic air-exhausting function after startup | ||||||||
| 5.加熱功率切換功能 | ||||||||
| Switchover of heating power | ||||||||
| 6.熱油BY-PASS泄壓回路 | ||||||||
| BY-PASS pressure release loop for hot oil | ||||||||
| 7.多點溫度控制機組可訂作 | ||||||||
| Customizable multi-point temperature control unit | ||||||||
| 8.油泵馬力和加熱功率可訂作 | ||||||||
| Customizable horsepower and heating power of oil pump | ||||||||
| 9.即實時冷卻關機功能(選購) | ||||||||
| Instant cooling return oil shut-down function (optional) | ||||||||
| 10.控制方式: 采用進口微電腦或(選購)PLC控制 | ||||||||
| Control mode: imported microcomputer or PLC (optional) | ||||||||
| 11.溫度控制范圍: 進水溫+40℃→300℃ | ||||||||
| Range of temperature control: +40℃→300℃ for incoming water | ||||||||
| 12.隔離式電器控制箱. 延長電器使用年限 | ||||||||
| Isolated electric box for longer services lives of electric appliances | ||||||||
| 13.RS485通訊功能, 實現自動化管理.(選購) | ||||||||
| RS485 communication function for automated management (optional) | ||||||||
| 14.304不銹鋼一體管路,減少管阻及銹垢 | ||||||||
| 304 stainless steel integrated pipelines for less pipe resistance and rust | ||||||||
| 15.電器采用OMRON. FUJI. TE. LG.MOELLR.ABB.WEST | ||||||||
| Brands OMRON, FUJI, TE and LG.MOELLER.ABB and WEST for electric appliances | ||||||||
| 16.安全保護完善,故障顯示, 維修.保養無需專業人員 | ||||||||
| Perfect safety protection, fault display, easy repair and maintenance even without professionals | ||||||||
| 規格SPEIFICATIONS | ||||||||
| 模型Model | 單位UNIT | TOB-10 | TOB-20 | YOB-30 | TOB-50 | TOB-75 | TOB-100 | TOB-150 |
| 溫控范圍 Control range | ℃ | 300℃ | ||||||
| 溫控精度 Temp.control accuracy | ℃ | PID±1℃ | ||||||
| 電源 Power supply |
AC 3φ380V50HZ（or other)或其它 |
|||||||
| 傳熱媒體 Heat.transfer medium | 導熱油CEAT TRANSFER OIL | |||||||
| 冷卻方式 Cooling method | 間接冷卻INDIRECT C00LING | |||||||
| 加熱能量Heating capacity | KW | 12/18 | 18/24 | 24/30 | 36/50 | 60/70 | 80/100 | 110/150 |
| 泵浦馬力（功率）Horsepower of Pump | HP/KW | 1/0.75 | 2/1.5 | 3/2.25 | 5/3.75 | 7.5/5.6 | 10/7.5 | 15/11 |
| 泵浦工作流量 Working flow of pump | L/MIN | 25 | 50 | 180 | 250 | 300 | 500 | 750 |
| 泵浦工作壓力Working pressure of pump | KG/C㎡ | 2.0 | 2.5 | 2.8 | 3.2 | 3.8 | 4.9 | 4.0 |
| 最大電力消耗Maximum power consumption | KW | 13/19 | 19/26 | 26/27 | 29/50 | 66/68 | 72/100 | 106/132 |
| 警報功能 Alarm function | 缺相/缺水/超溫/過載/反轉 | |||||||
| 冷卻水配管Cooing water pipework | INCH | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 |
| 循環油配管Circulation oil pipe | INCH | 3/8x2 | 3/8x2 | 3/8x4 | 3/8x4 | 3/8x4 | 3/4x4 | (3/8x4)x2 |
| 外型尺寸 LxWxH | CM | 120x50x110 | 120x50x110 | 120x50x110 | 120x50x110 | 135x50x132 | 135x50x132 | 135x50x132 |
| 重量 Weighht | KG | |||||||
| 以上規格如有變更，恕不另行通知，特殊規格及多機一體機型可定制。Special design upon request | ||||||||
